Shree Prefab Profile Sheets are built for superior drainage, high load-bearing capacity, and structural accuracy in all industrial and commercial builds.
Galvalume Sheeting
Toba Blue
Slate Grey
(RAL7015)
Light Blue
(RAL 5012)
Cool Grey
(RAL 7035)
Turquoise Blue
(TSL/440)
Maroon
(TSL/283)
Mint Green
(TSL/258)
Off White
(Ral 9002)
Beige
Cottage Green
Light Grey
(RAL 7037)
Torres Blue
Profile Sheet Range

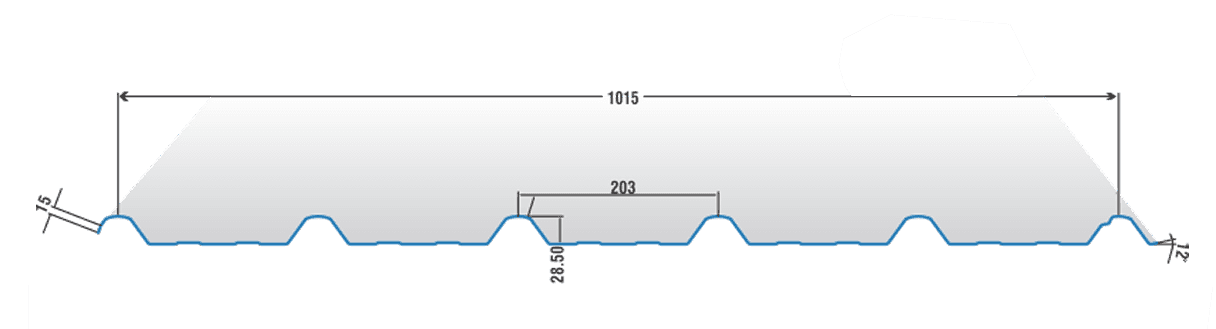

Available in 0.47 mm to 0.6 mm TCT Bare & Colour Coated Galvalume
Input Width
1220 mm
Supply Width
1072 mm
Effective Width
1015 mm
Pitch
203 mm
Depth
28.5 mm

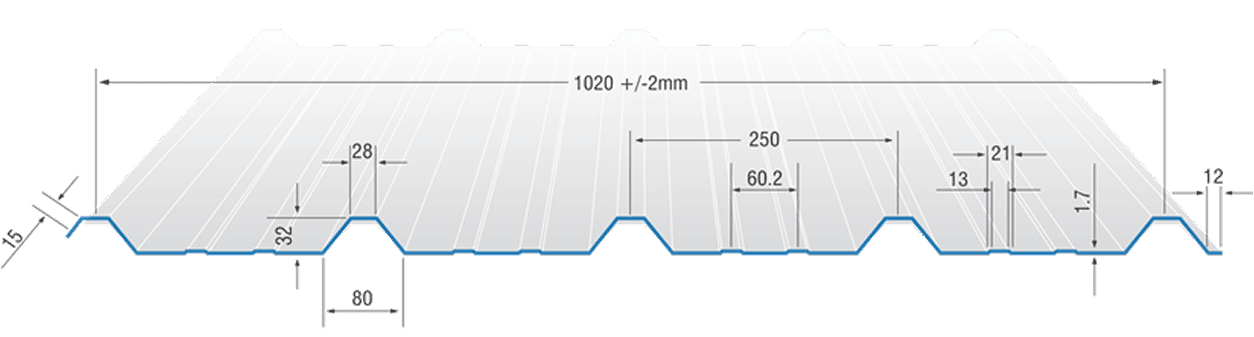

Available in 0.47 mm to 0.6 mm TCT Bare & Colour Coated Galvalume
Input Width
1220 mm
Supply Width
1080 mm
Effective Width
1020 mm
Pitch
250 mm
Depth
32 mm

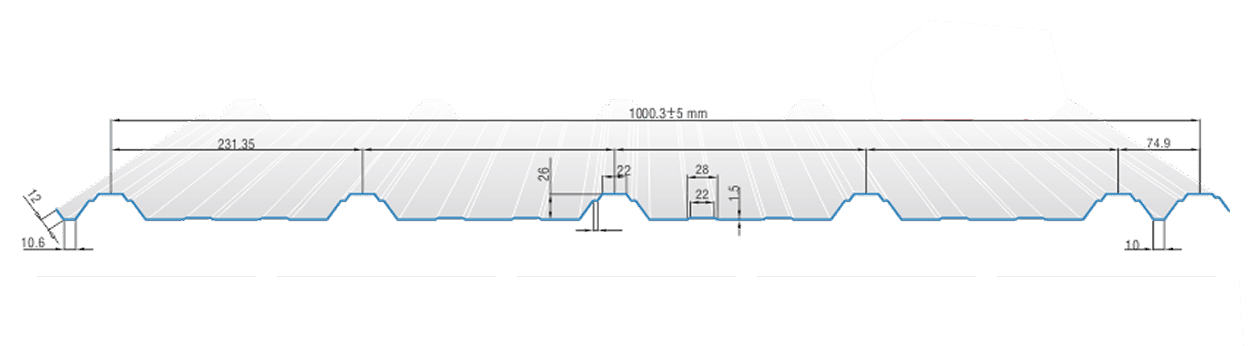

Available in 0.47 mm to 0.6 mm TCT Bare & Colour Coated Galvalume
Input Width
1220 mm
Supply Width
1076 mm
Effective Width
1000 mm
Pitch
231.35 mm
Depth
26 mm

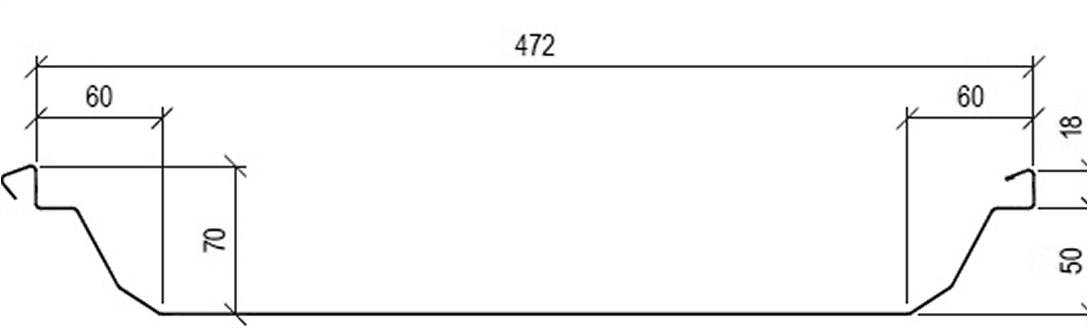

Available in 0.47 mm to 0.6 mm TCT Bare & Colour Coated Galvalume
Input Width
610 mm
Effective Width
472 mm
Depth
70 mm
Bare Galvalume
Colour : Natural Silver
- Coating : AZ 150, 55%, AI, 43% Zn, 1.6% Si
Base Material : ASTMA792M Grade 345 Class I (Max. 550 MPA YS)
Thickness Range: 0.47MBT to 0.60BMT

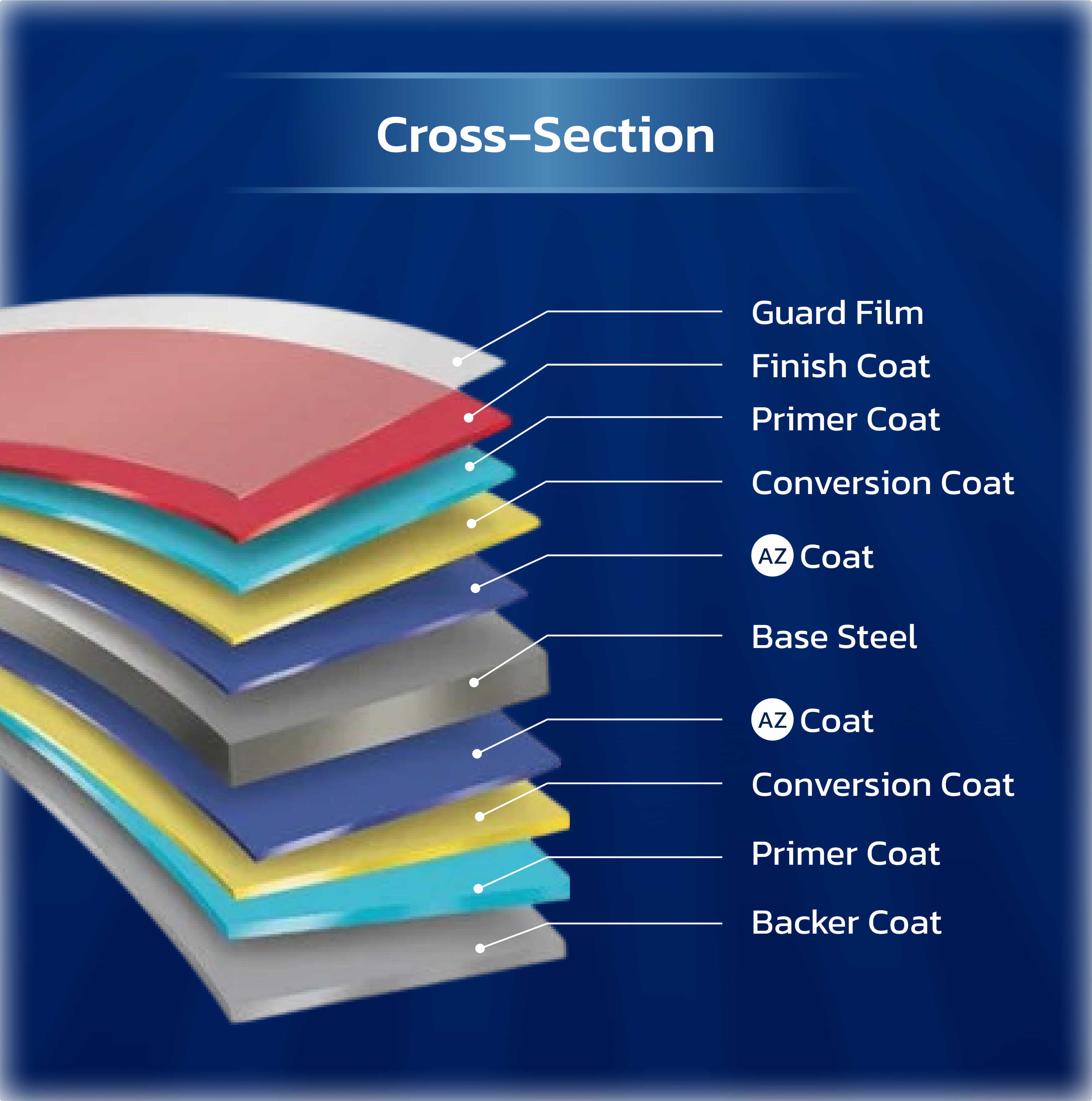

Pre-Painted (PPGL)
Colour : Any RAL Colour
- Coating : AZ 150, 55%, AI, 43% Zn, 1.6% Si
Base Material : ASTMA792M Grade 345 Class I (Max. 550 MPA YS)
Type of Coating : RMP/SMP/SDP/PVDF
Sheeting Accessories
We offer a comprehensive range of accessories—gutters, flashings, trims, and closures—designed for precision fit, weather protection, and aesthetic detailing in every build.
Rake Trim
Outside Corner Trim
Bottom Trim
Trans Trim
Louver Side Trim
Inside Corner Trim
Cap Trim
Canopy Bottom Trim
Valley Gutter
Valley Gutter (Vg1)
Eave Gutter
